PASADENA SOUNDWALL
-
Client
Metro Gold Line Foothill Extension Construction Authority
-
General Contractor
Ace Fence Company
-
Project
Metro Gold Line Sound Wall Project – South Pasadena
-
Scope of Work
3330 L.F. of 9’ high x 16’ wide Soundwall alongside the Metro Gold Line passing through South Pasadena and Pasadena.
-
Material

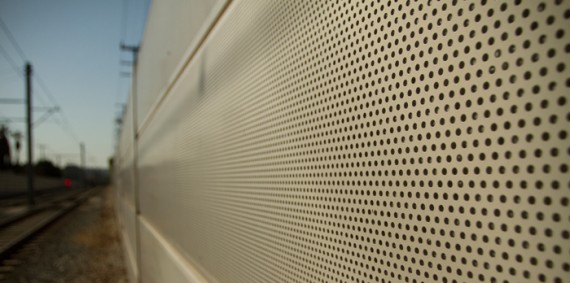

Soundwall panels are “Noishield Barrier Panels” manufactured by Industrial Acoustics Company (IAC). They are made of Cold rolled steel panels with A-60 Galvanneal coating, one side is solid steel of 14 ga., the perforated side is 20 Ga. with 3/16” holes on 3/8” staggered centers. Finish coating is a thermosetting polyester coating. Panels are resistant to attack by fungus, Class A fire-resistant, vermin-proof and non-hygroscopic. Material exposed to the general public has to also have an anti-graffiti coating. Color of the panels: Sand Stone.
-
Description
These sound reduction panels were set along both sides of the Metro Gold Line. Some of the sections covered the following streets: Hawthorne St., Fairview Ave., Magnolia Ave., Orange Grove to El Centro, Mound Ave., Indiana to Orange Grove and PAMRC to Indiana Ave.
